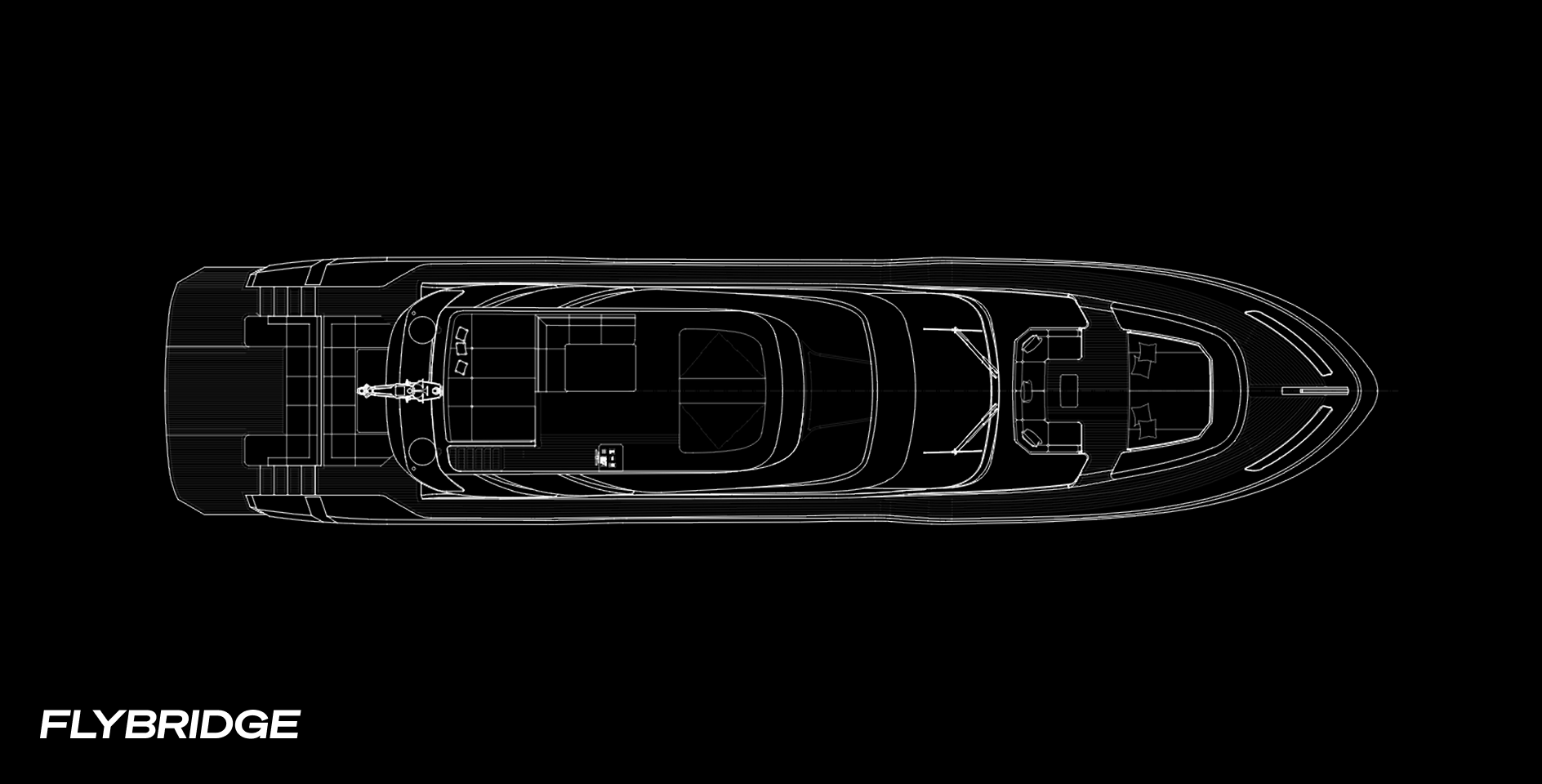

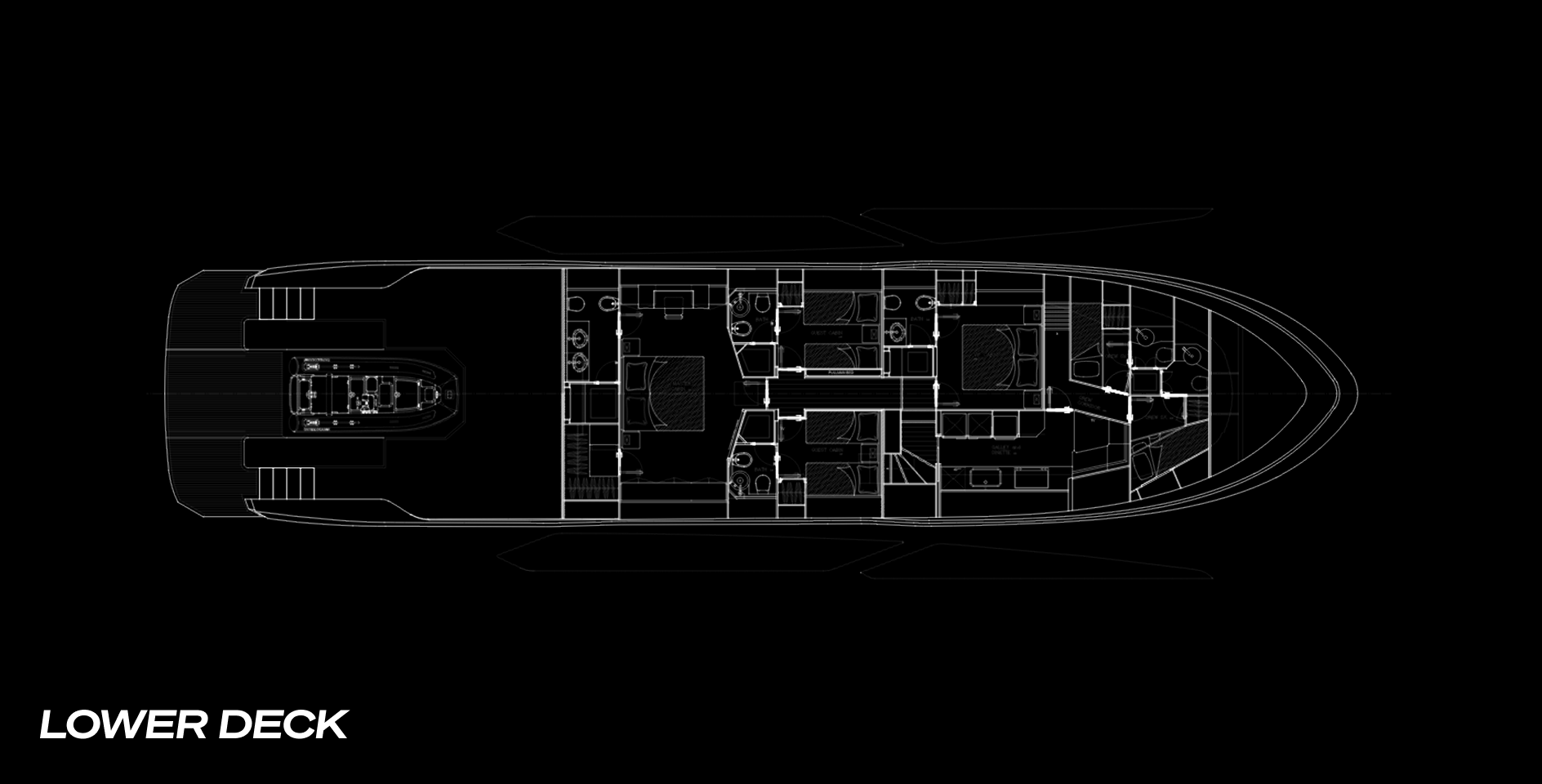

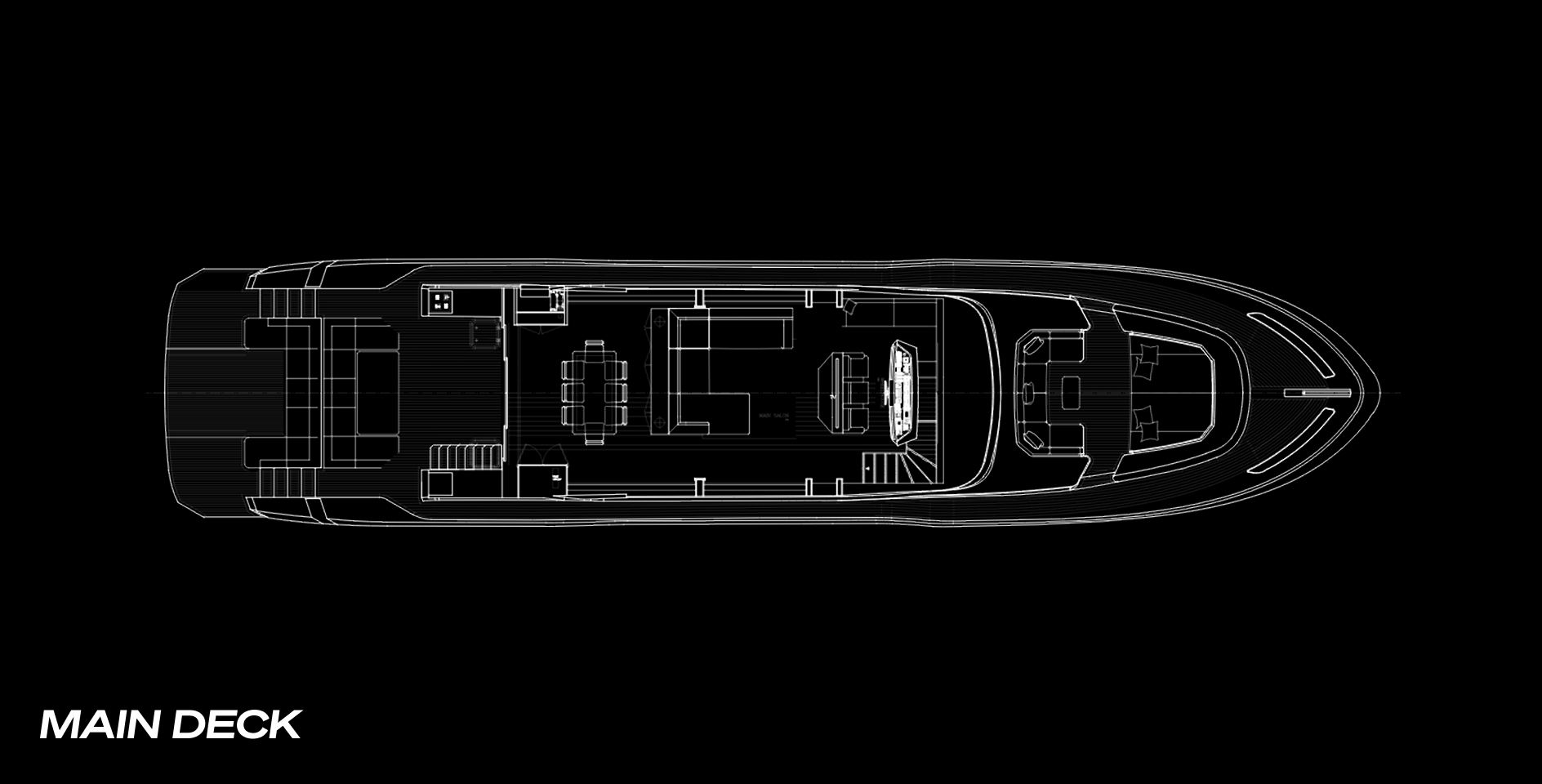

LAYOUT

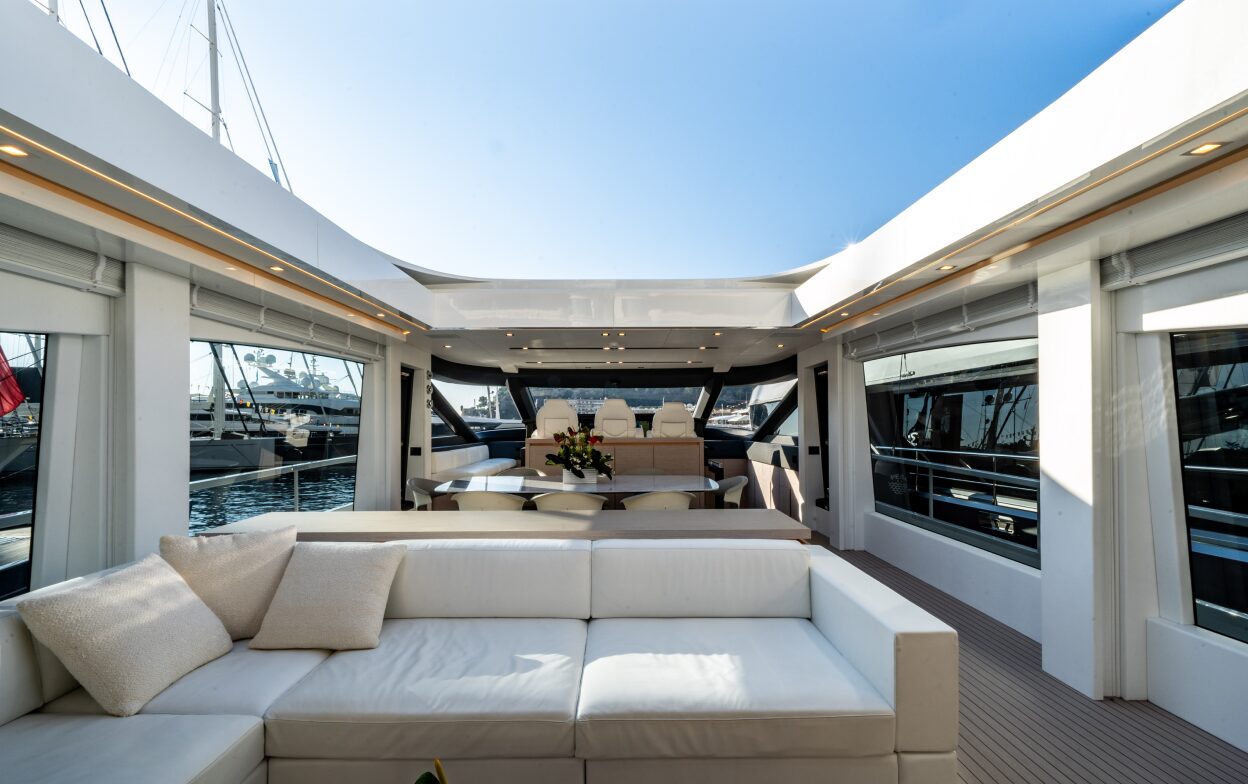

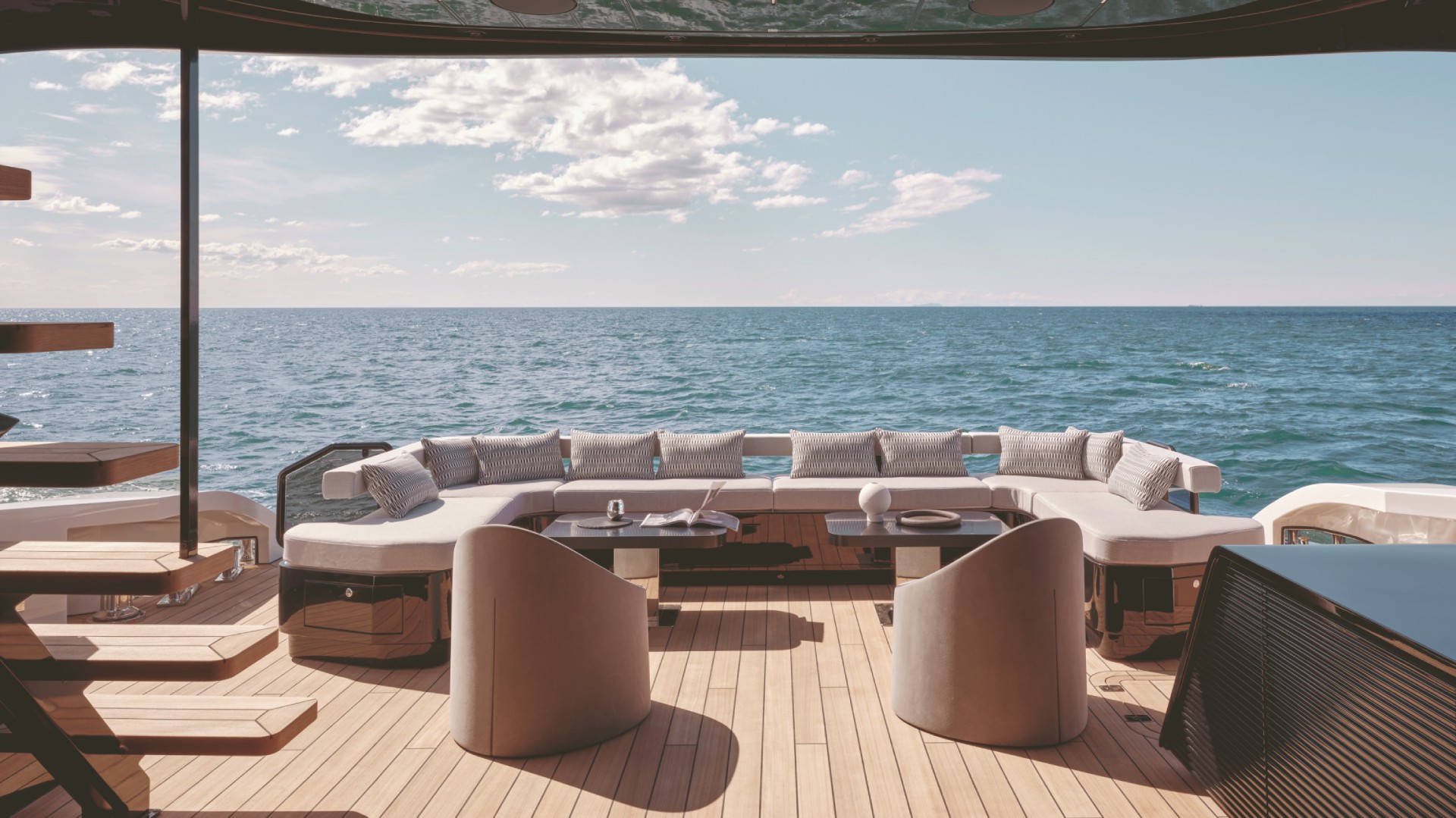

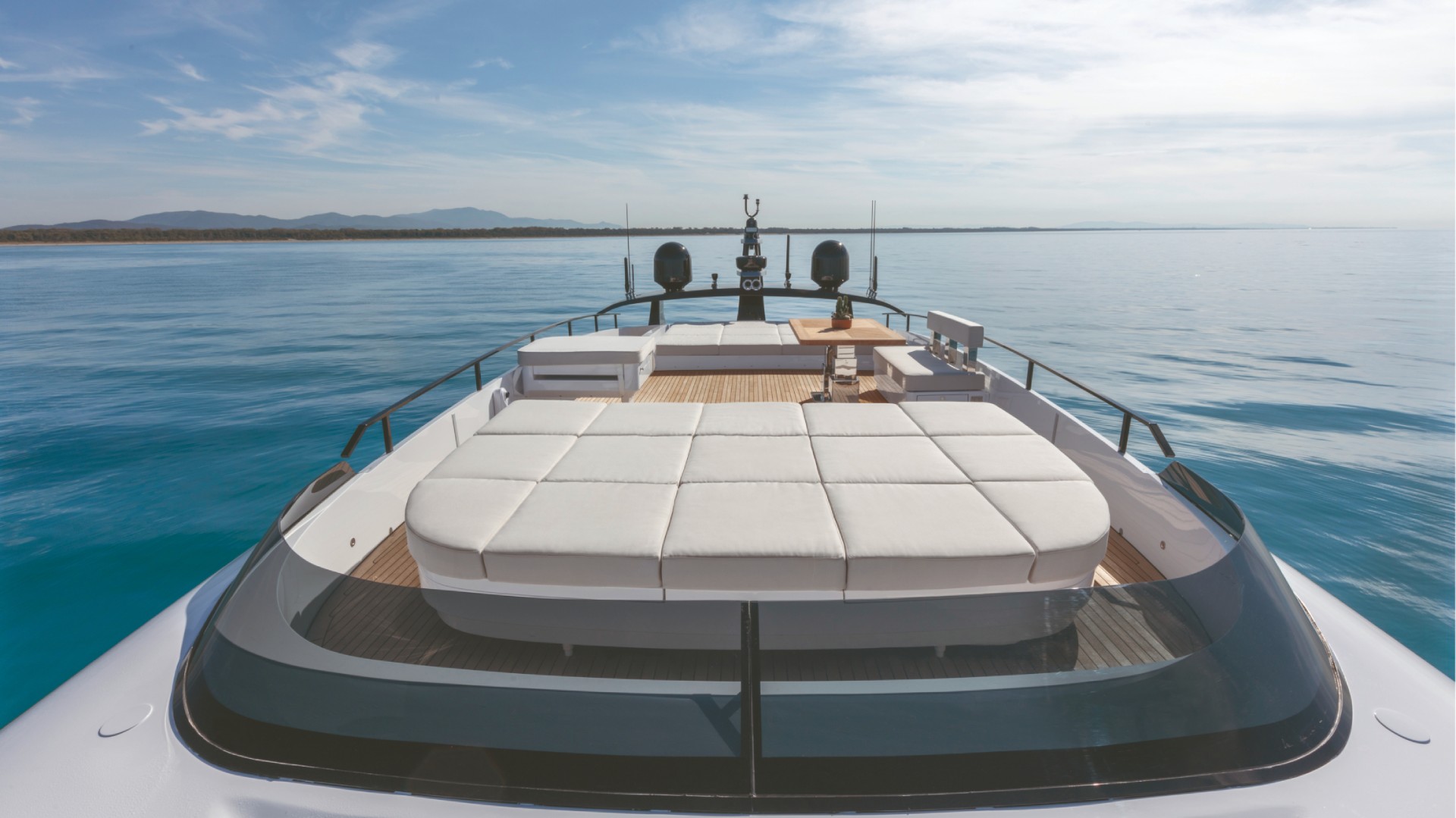

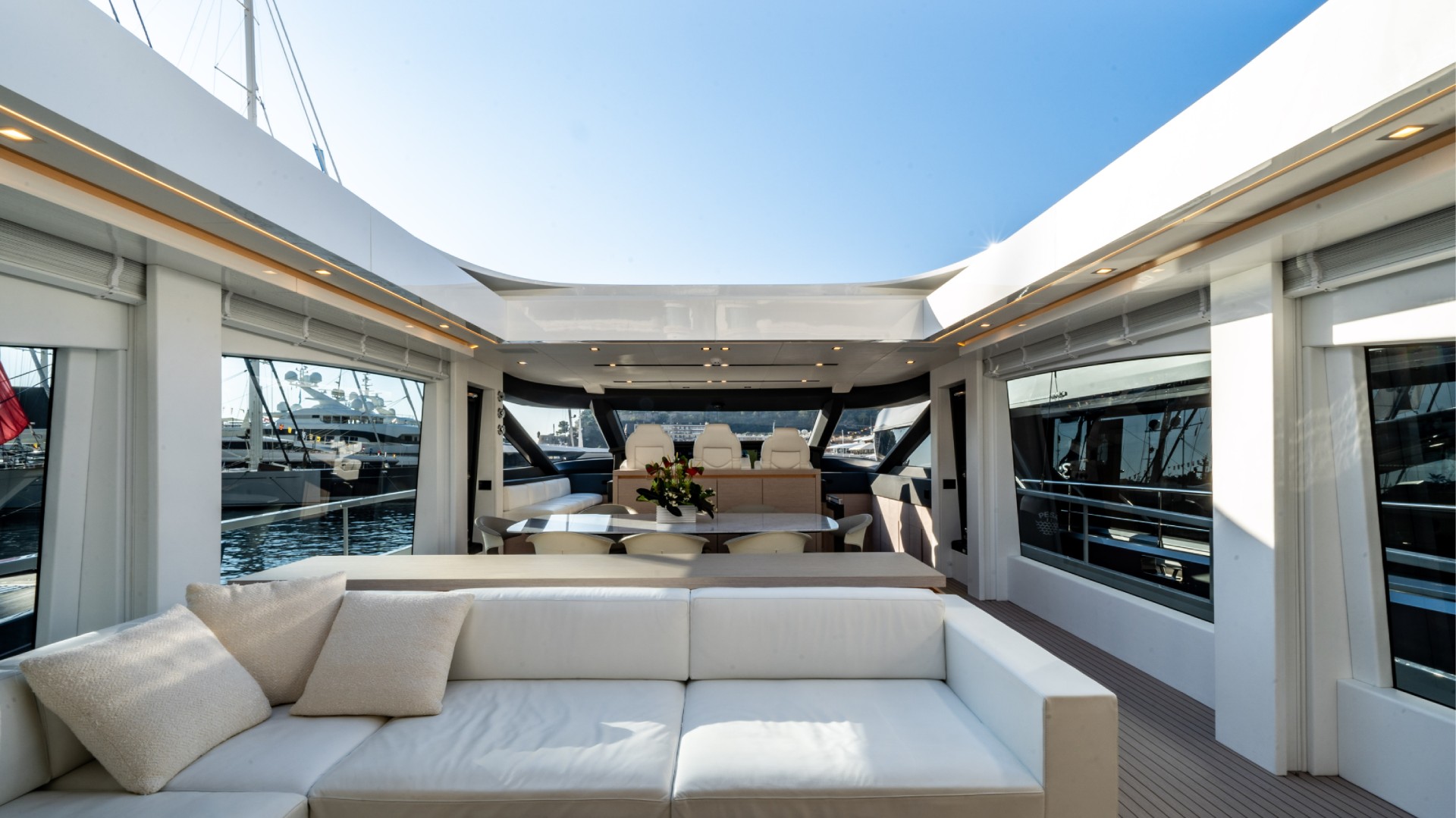

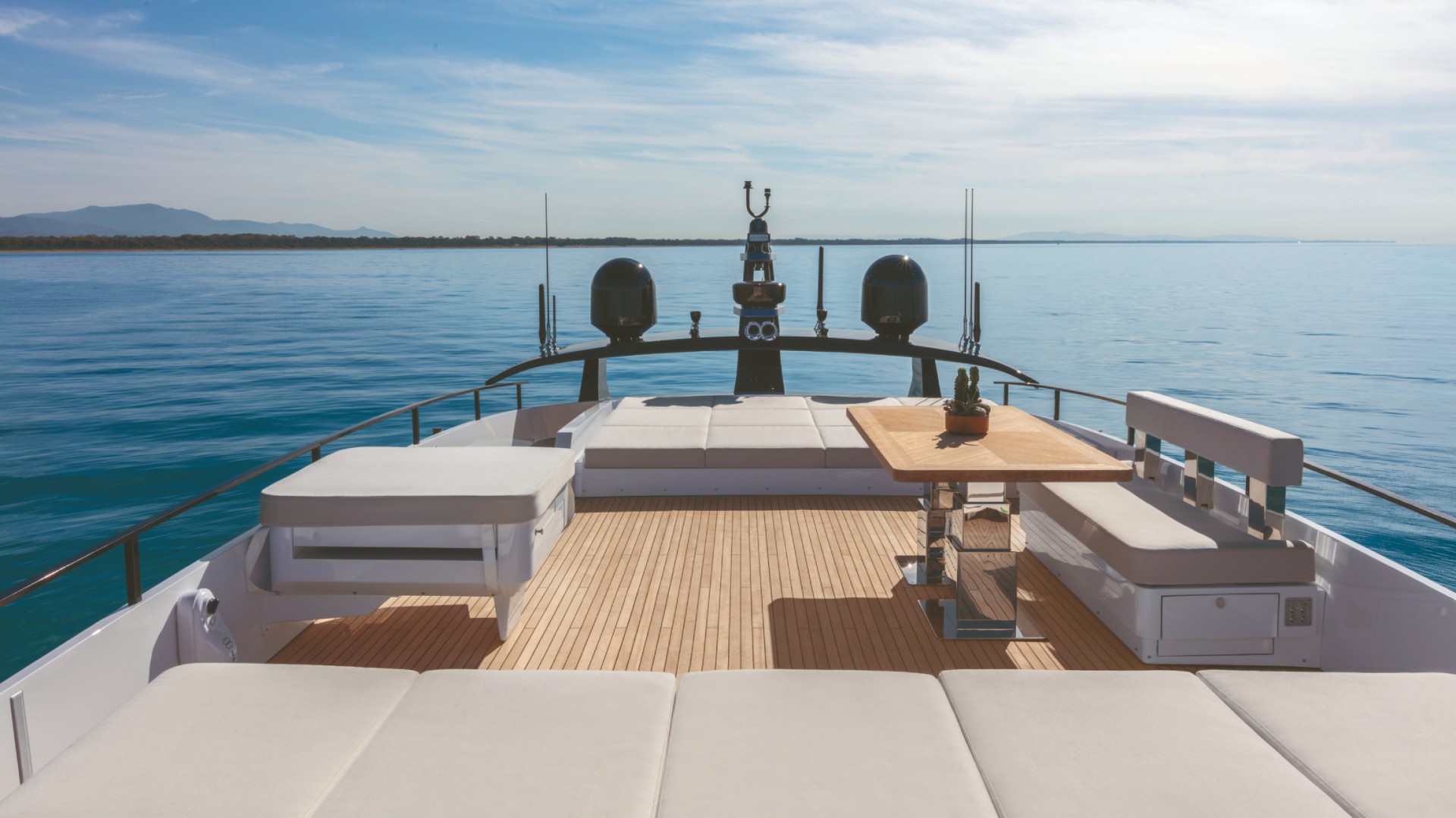

A sporty disposition with extreme attention to the onboard lifestyle offers multiple configurations that include areas for socialising or spaces for enjoying complete privacy, both indoors and out.

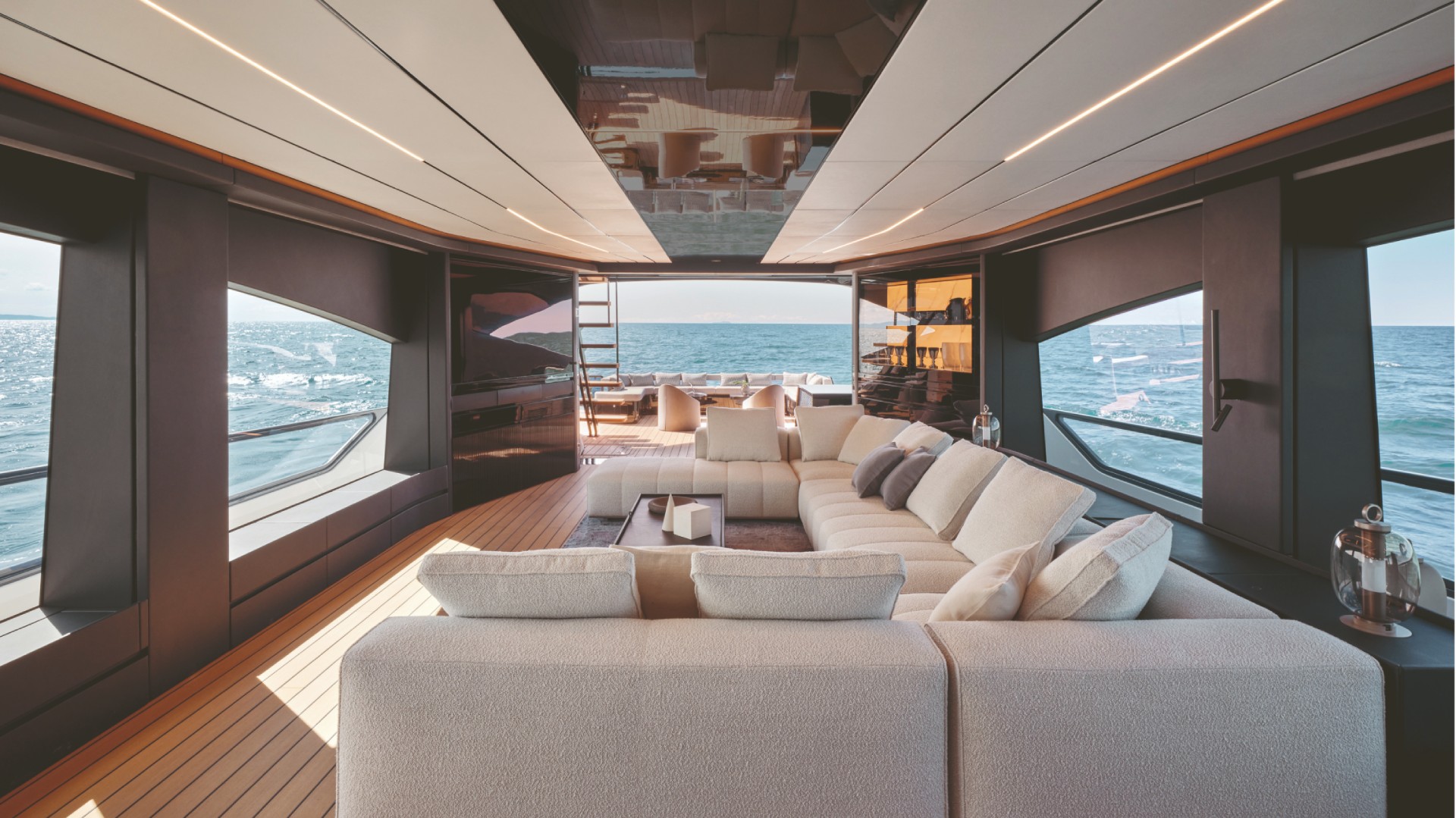

30 metres of exclusivity: surprising spaces and uniquely comfortable solutions in a high performance vessel. Comfort is absolute. Interiors and exteriors are fully configurable. AB 100 embodies the brand’s truly unmistakable identity: sleek, elegant lines that coexist harmoniously with unprecedented performance.

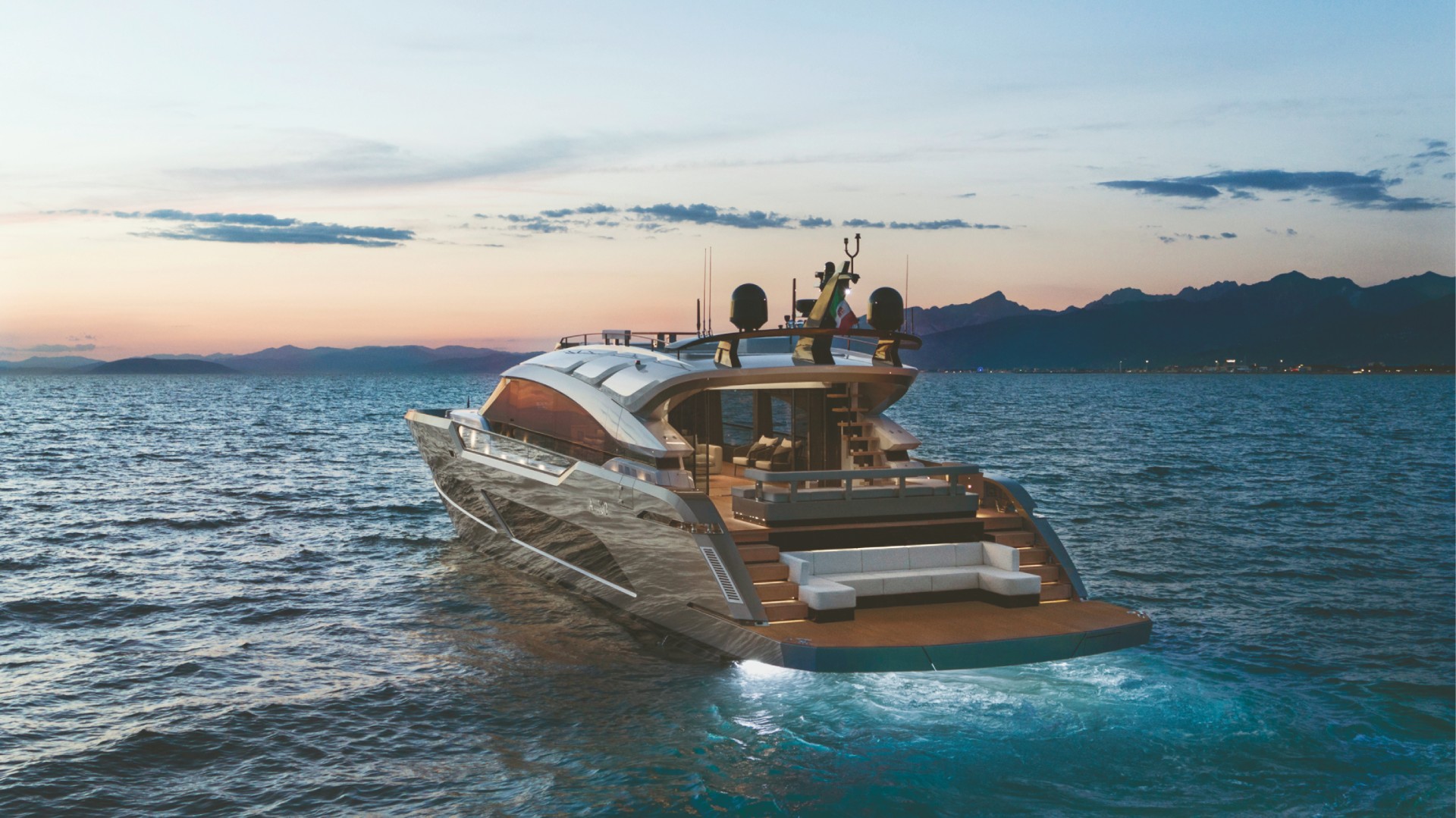

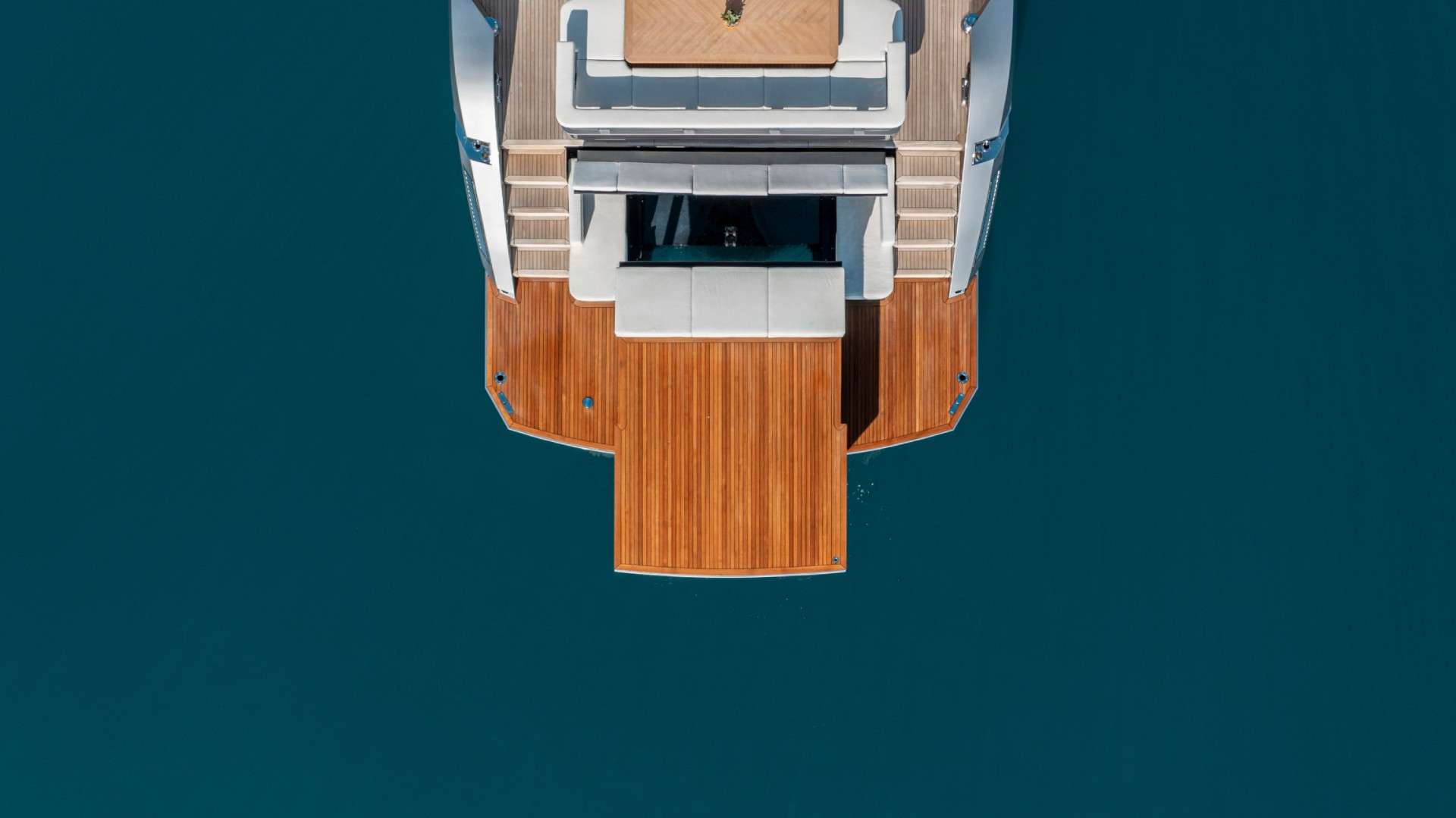

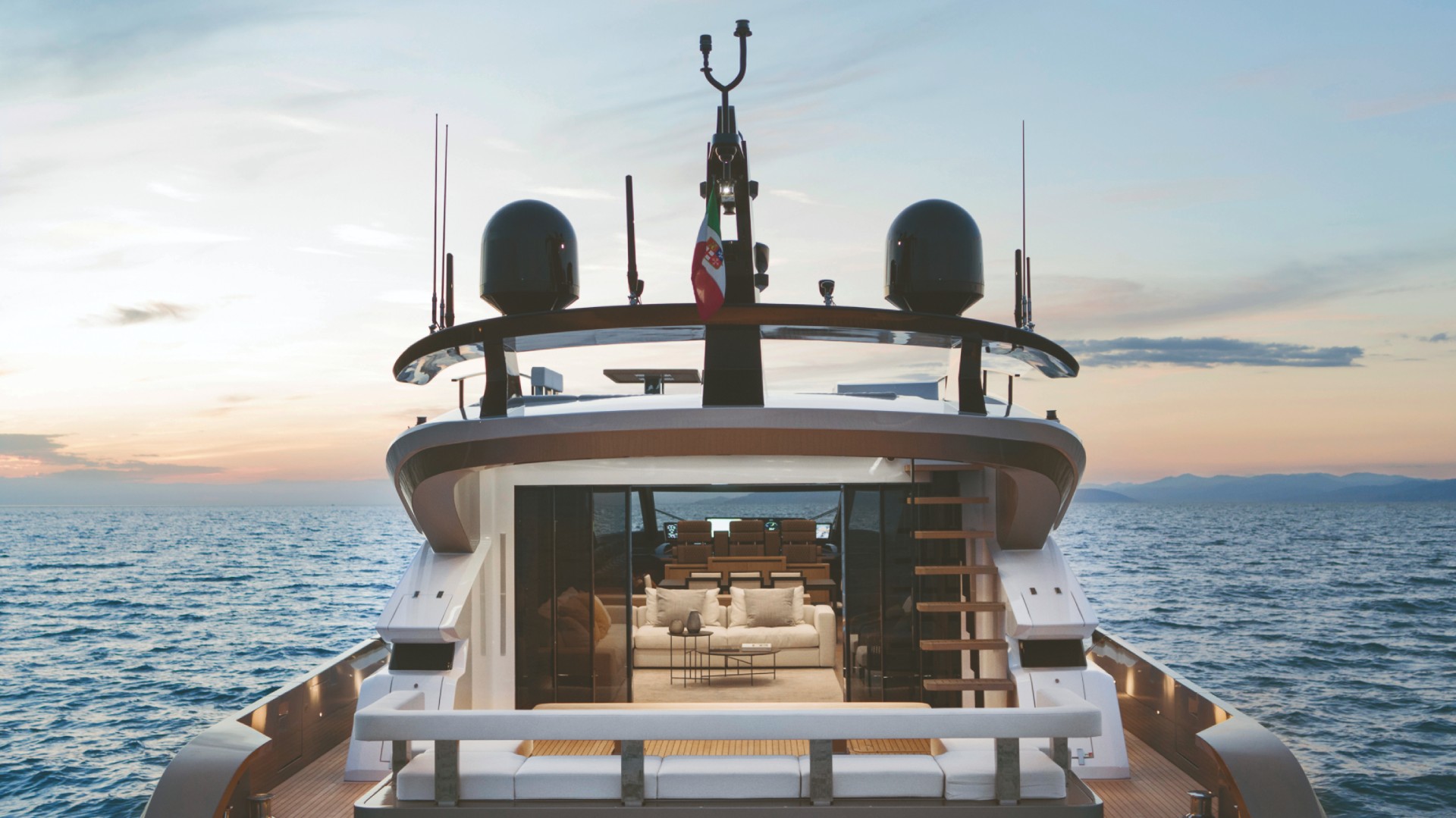

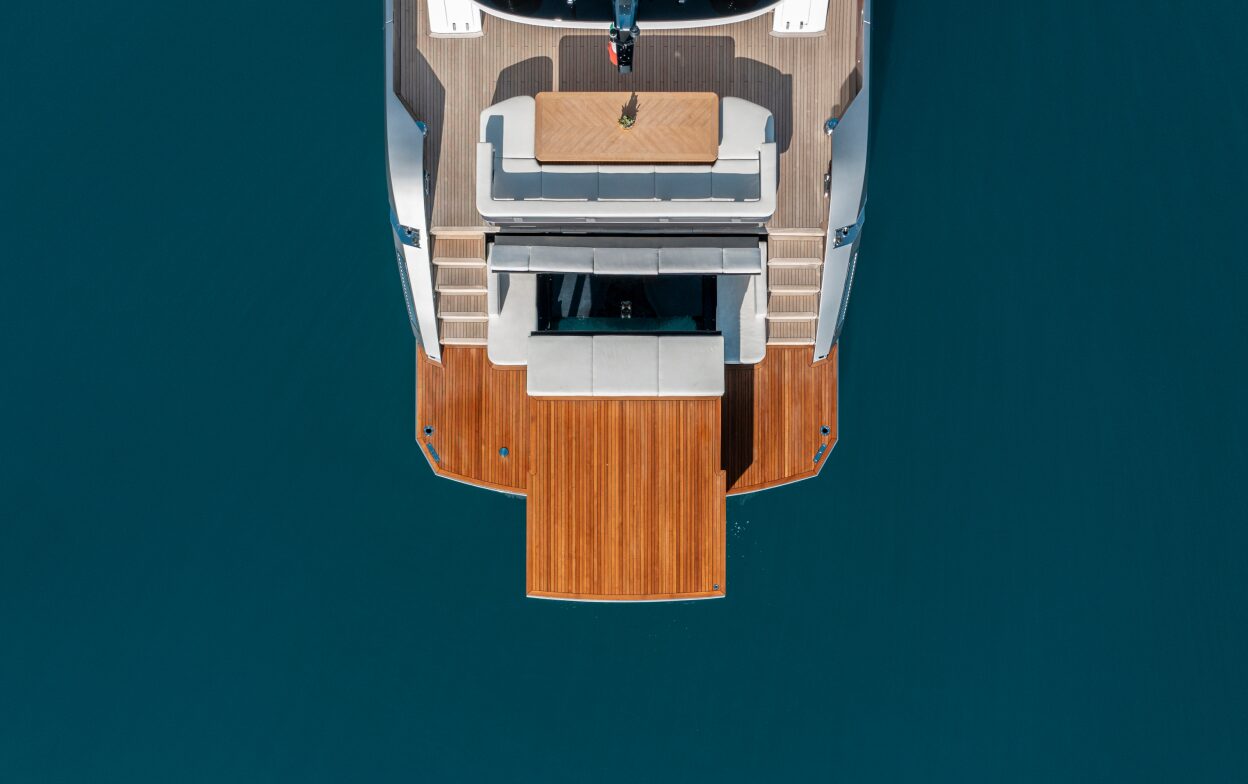

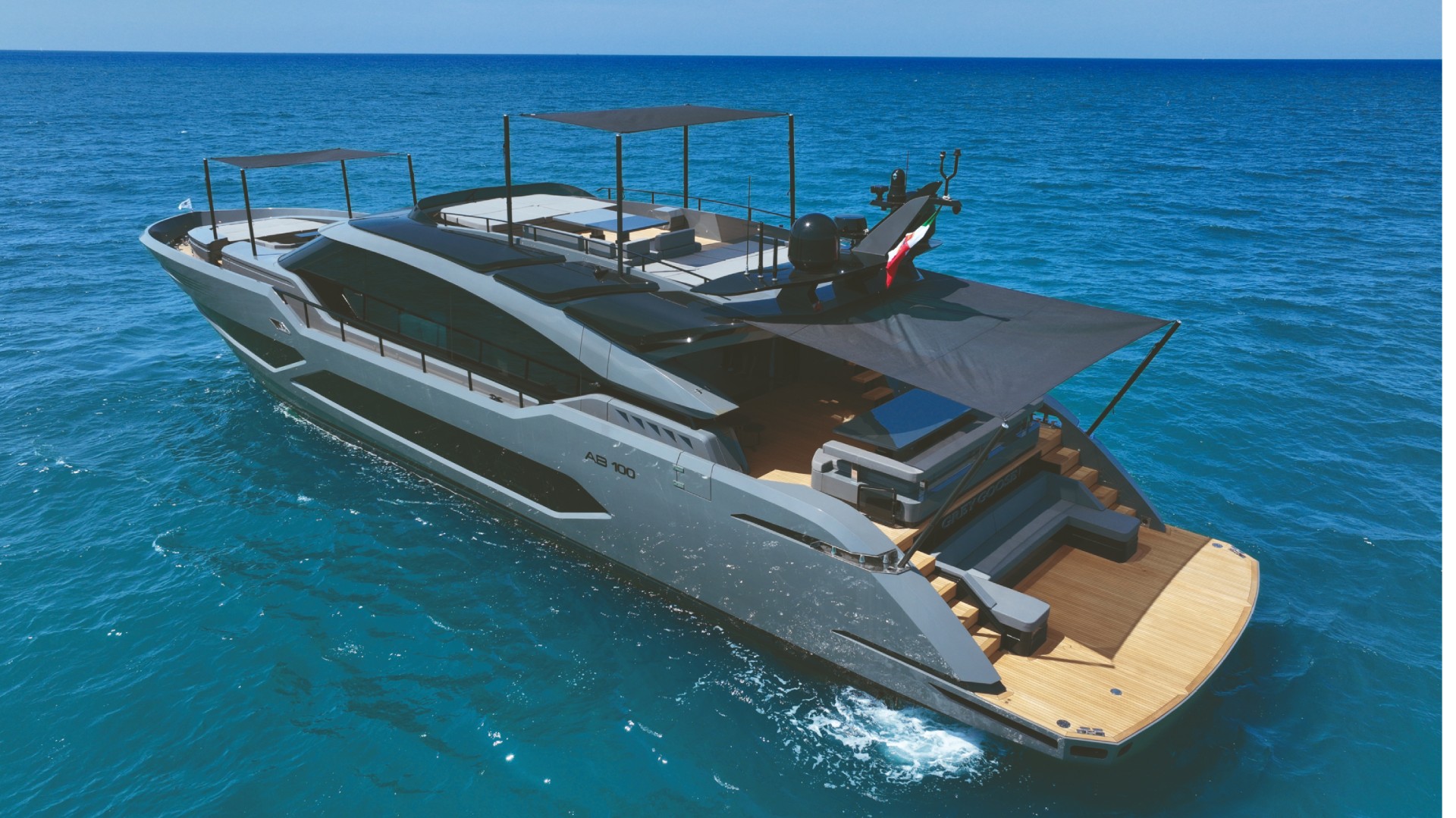

A fully-equipped proper beach area at sea or an enclosed stern with an easily-managed space for tenders and numerous water toys. The entire platform is raised in the beach area configuration with an innovative system to launch /haul and store , so that the tender can be steered directly inside.

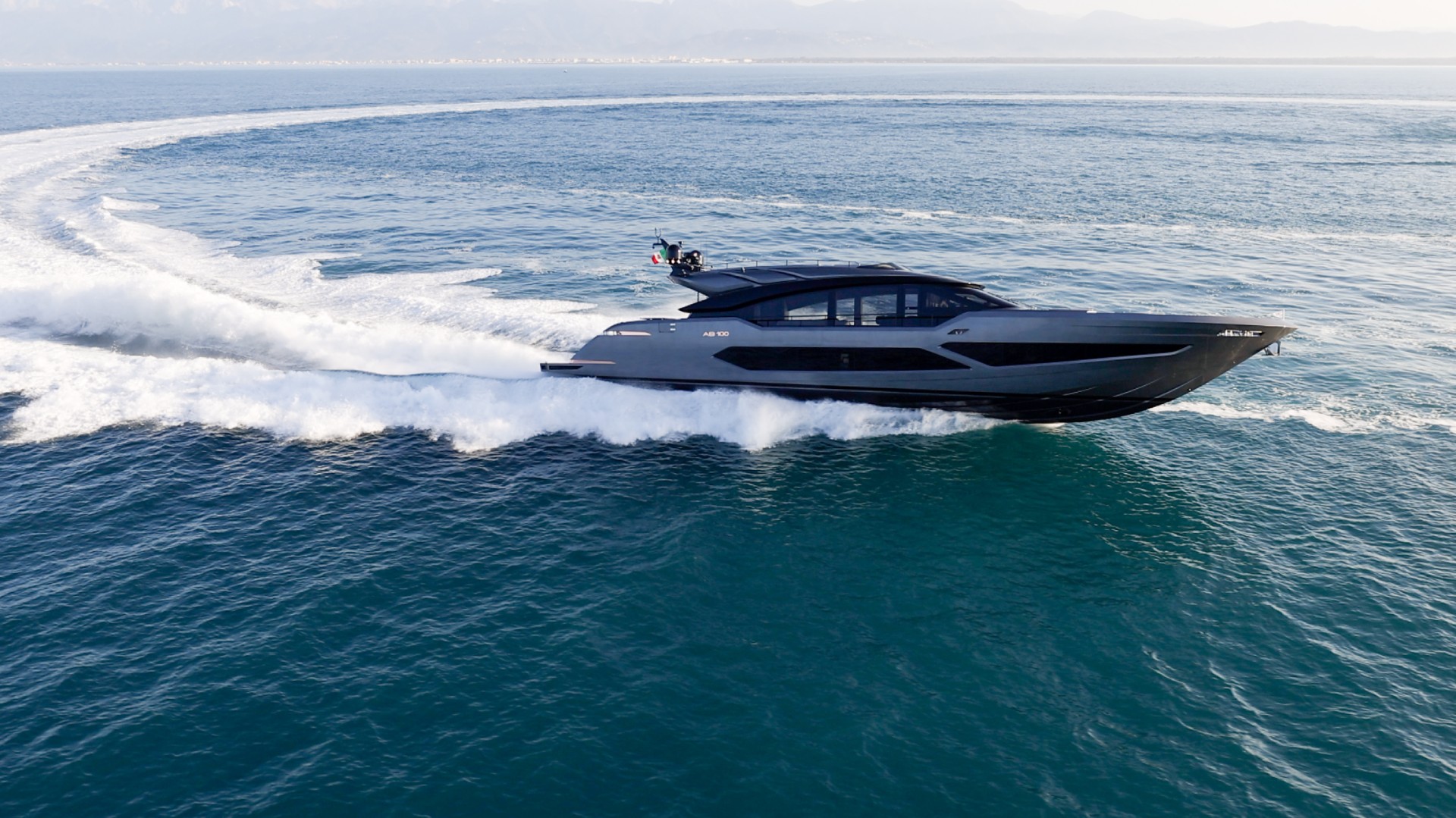

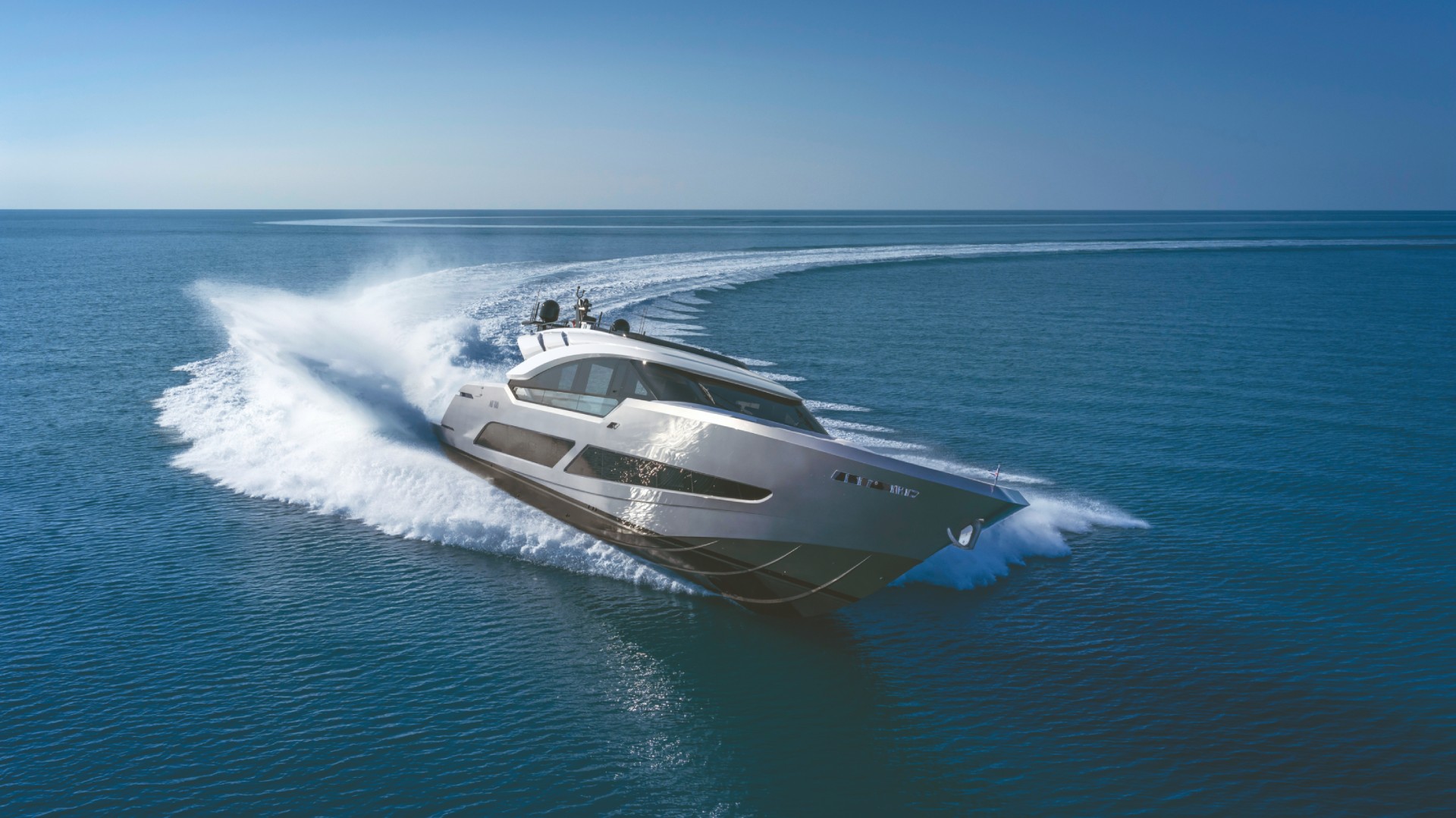

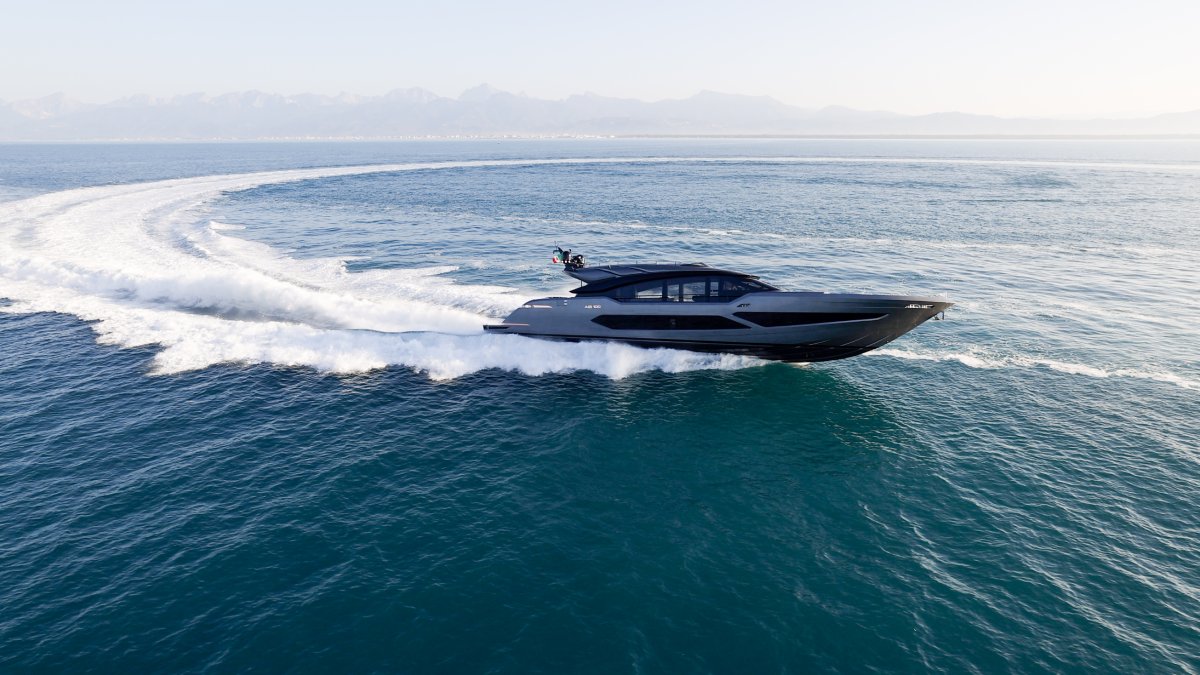

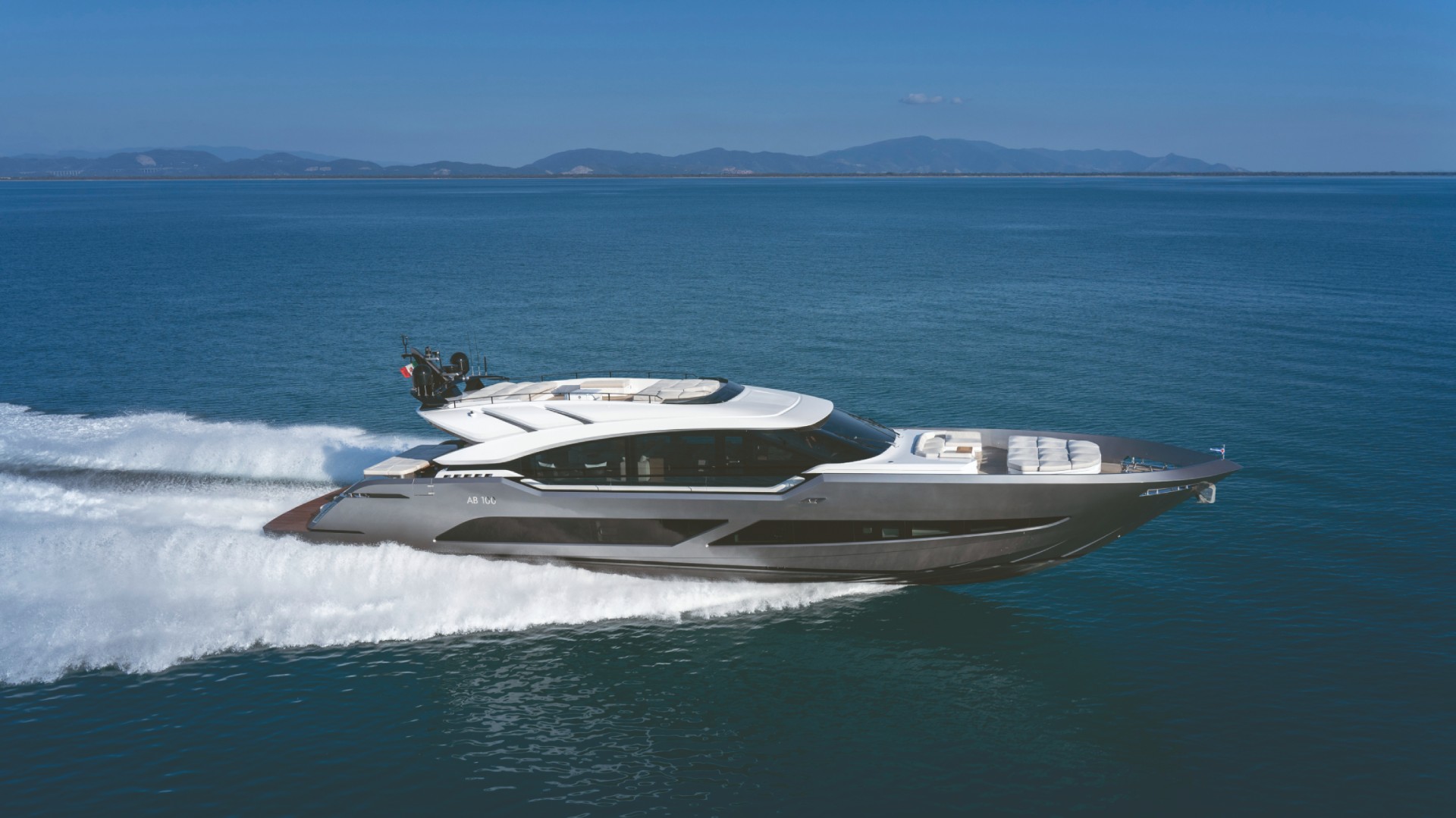

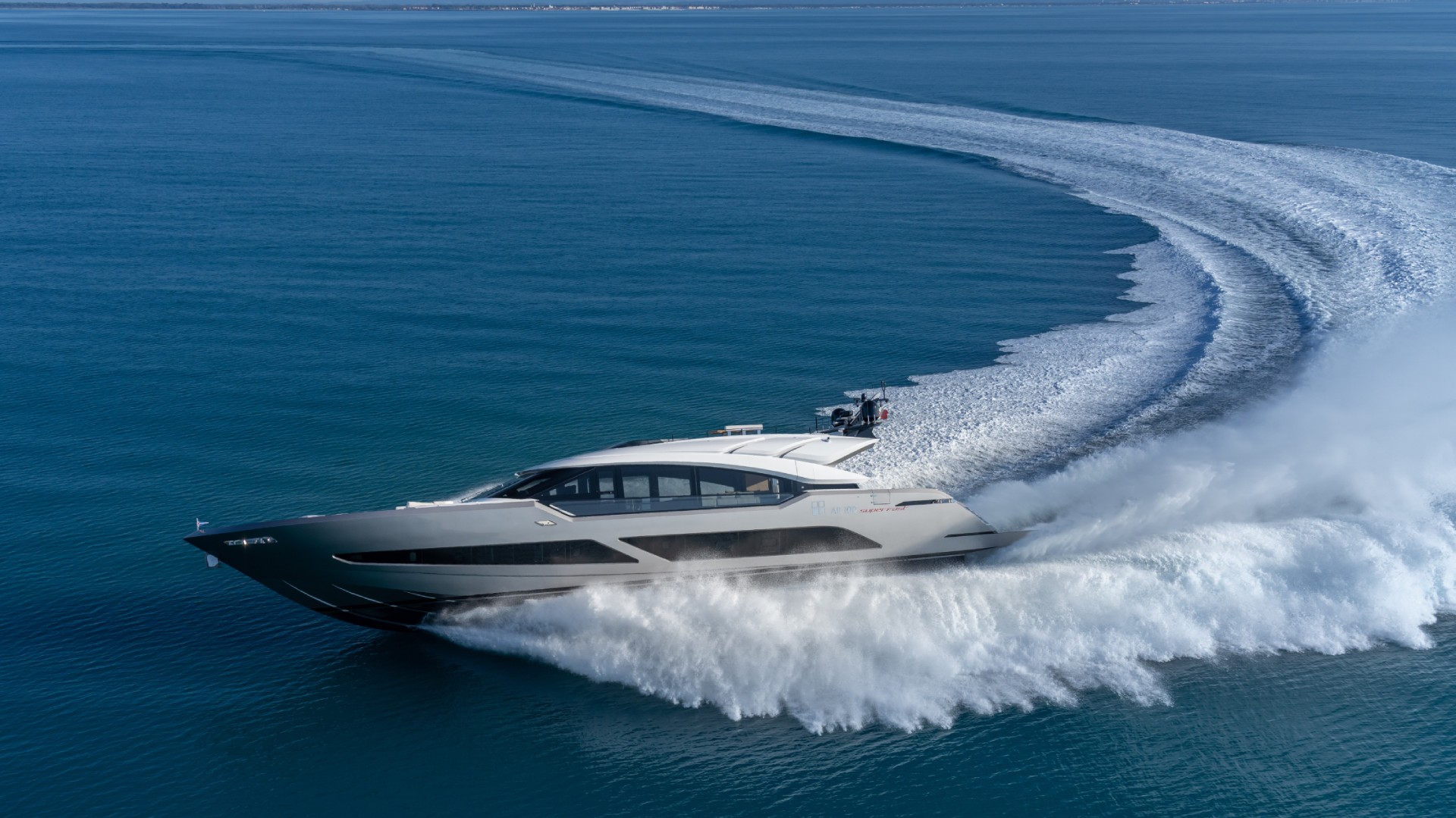

High performance – reaching speeds of at least 50 knots for all models in the range – represents the brand’s true identity without compromising comfort, safety, onboard spaces, or luxury handcrafted details. The AB 100 series offers a Superfast version, with a more powerful engine, allowing speeds of up to 60 knots. The fastest 30-metre on the market.
CONSTRUCTION
HULL Composite
SUPERSTRUCTURE Composite
DIMENSIONS
Length Overall 30,45 M / 100’
Beam 6,80 M / 22’3"
Max Draft 1,30 M / 4’5”
Displacement at full load 92 T / 202.825 lb
TANKS CAPACITY
Fuel Capacity 10.800 L / 2.853 US gal
Water capacity 2.000 L / 528 US gal
CLASSIFICATION
R.I.Na. – C ✠ HULL • MACH Y – Unrestricted Navigation (pleasure)

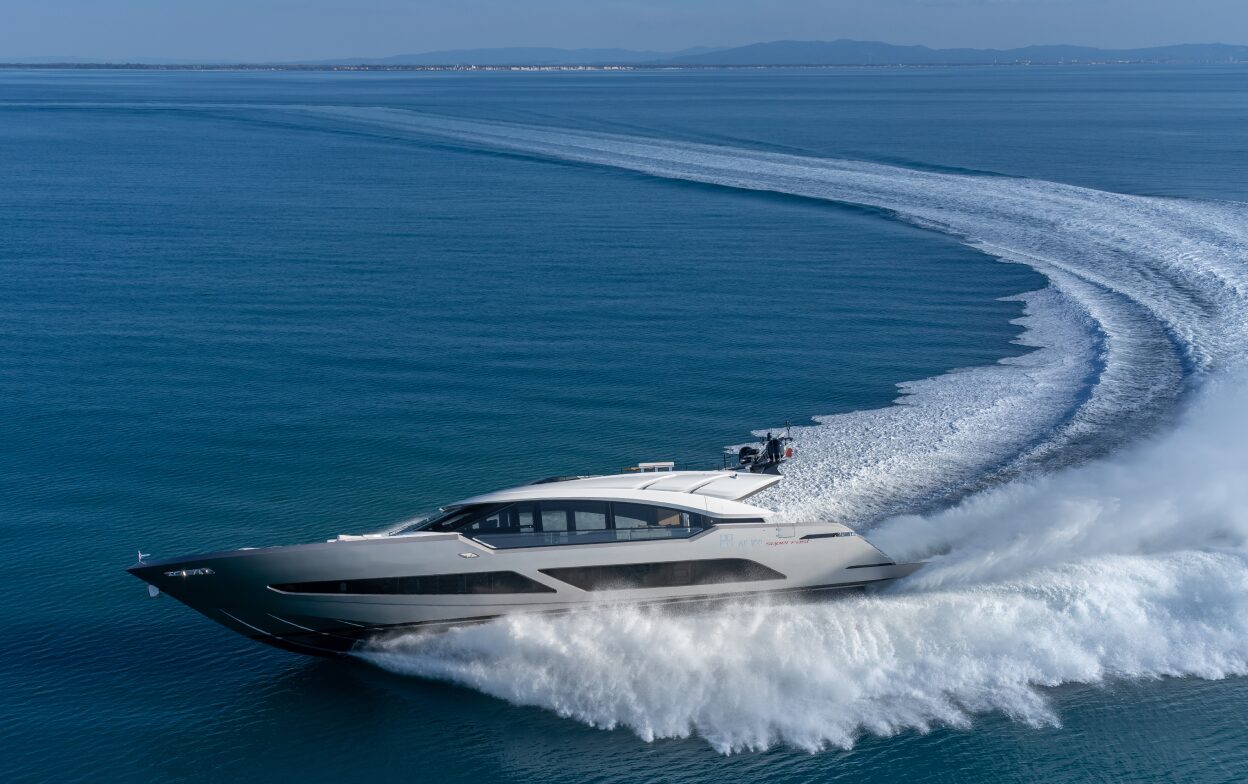

PROPULSION
Main engines power [3] MAN V12-2000 hp/each (1470 kW @ 2300 rpm
Transmission [2] MJP steerable waterjets + [1] MJP central booster
Stabilization Gyro Stabilizer (zero speed and underway) Seakeeper mod.26
PERFORMANCE
Max speed 48 KNOTS
Range ~ 500 NM at cruising spee
ACCOMODATION

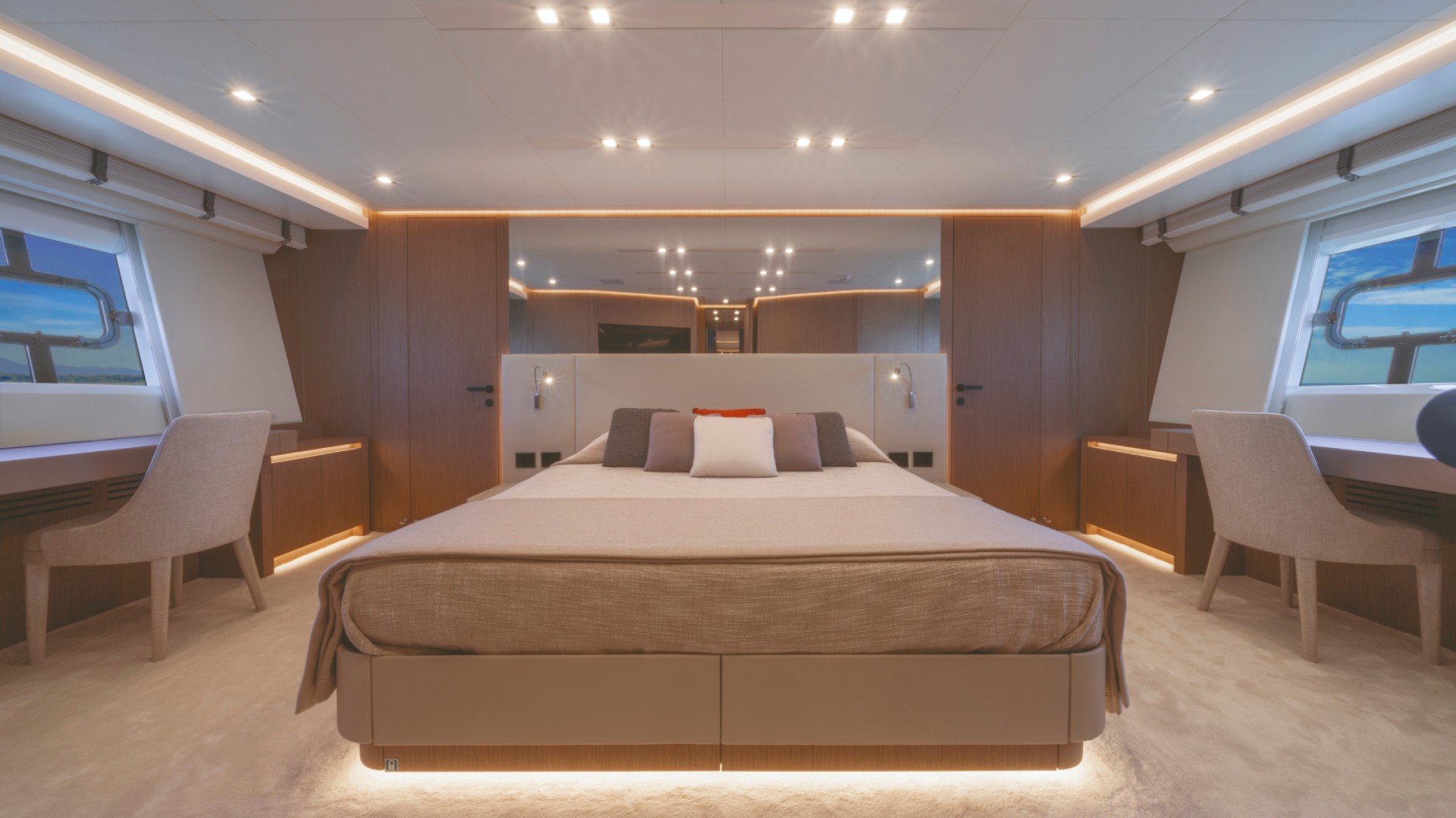

Guests Up to 9 in 4 cabins
Crew 3 in 2 cabins
